ANCILLARIES

Selematic Group offers a wide range of accessory modules that represent complementary solutions designed to integrate, complete, and optimize packaging and cartoning lines. Thanks to their high modularity, they can be installed on both new systems and existing lines, improving production efficiency, quality control, and product safety.

These systems make it possible to perform essential operations such as weight checking, metal contaminant detection, verification of proper carton closing, automatic lid application, and case orientation management for subsequent handling and palletizing stages.

Designed to ensure reliability, precision, and ease of integration, the accessory modules allow the system configuration to be customized according to specific production requirements, ensuring operational continuity and compliance with the quality standards required by the market.

MODULES

CP120 MET_SLIM CP120_MET CPC CCH4 CS-EA R180 H300

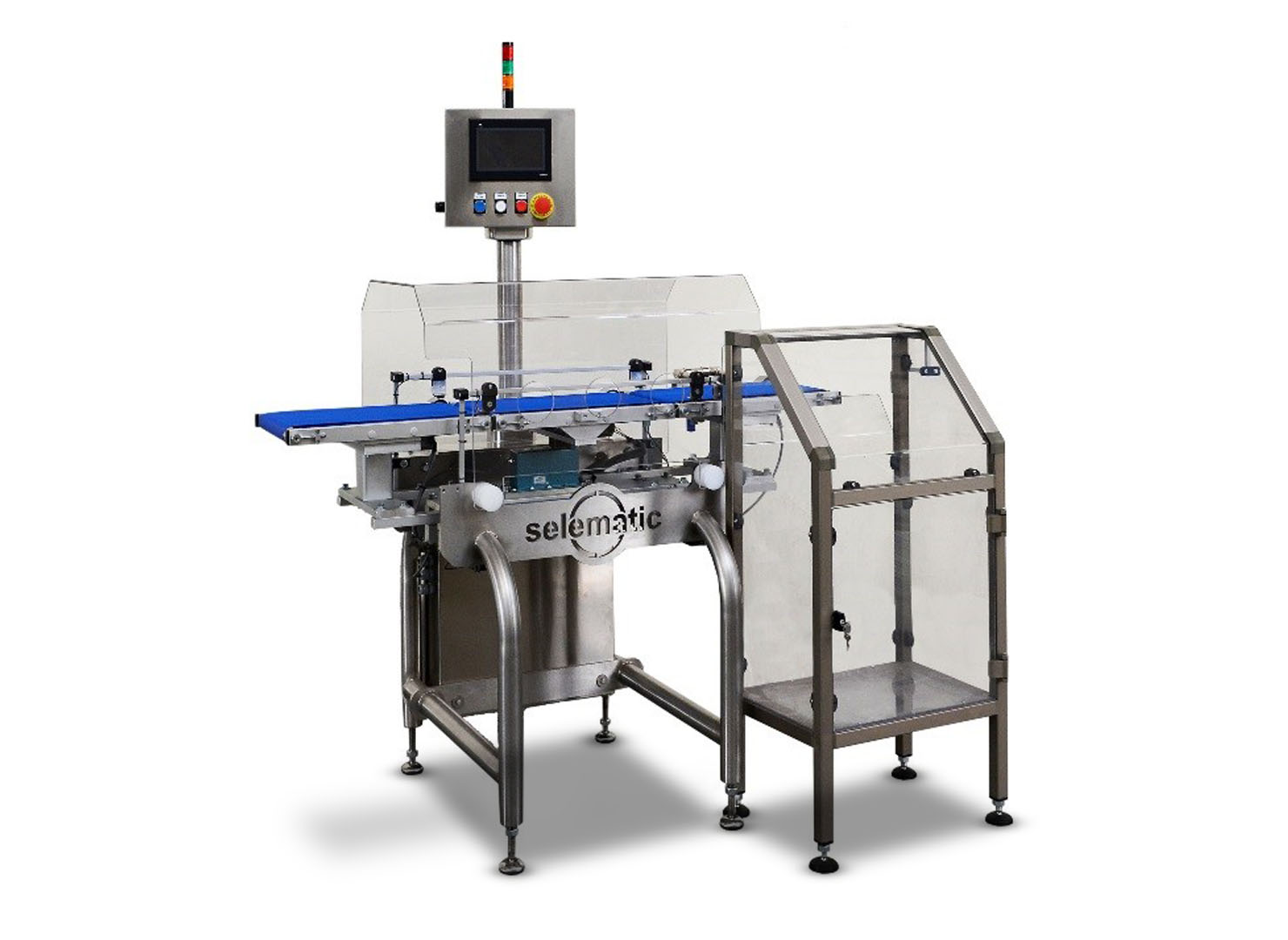

CP120

BAG CHECKWEIGHER

The CP120 checkweigher for bags weighing between 50g and 2600g dynamically checks the correct weight of packages during the production process.

It is equipped with an automatic package ejection system and a collection box for non-compliant bags.

MAXIMUM CAPACITY	2600 g
MINIMUM CAPACITY	50 g
PRECISION CLASS	XIII (1)
SENSITIVITY	1 g
MAX PRODUCTIVE CAPACITY	130 bags/min.

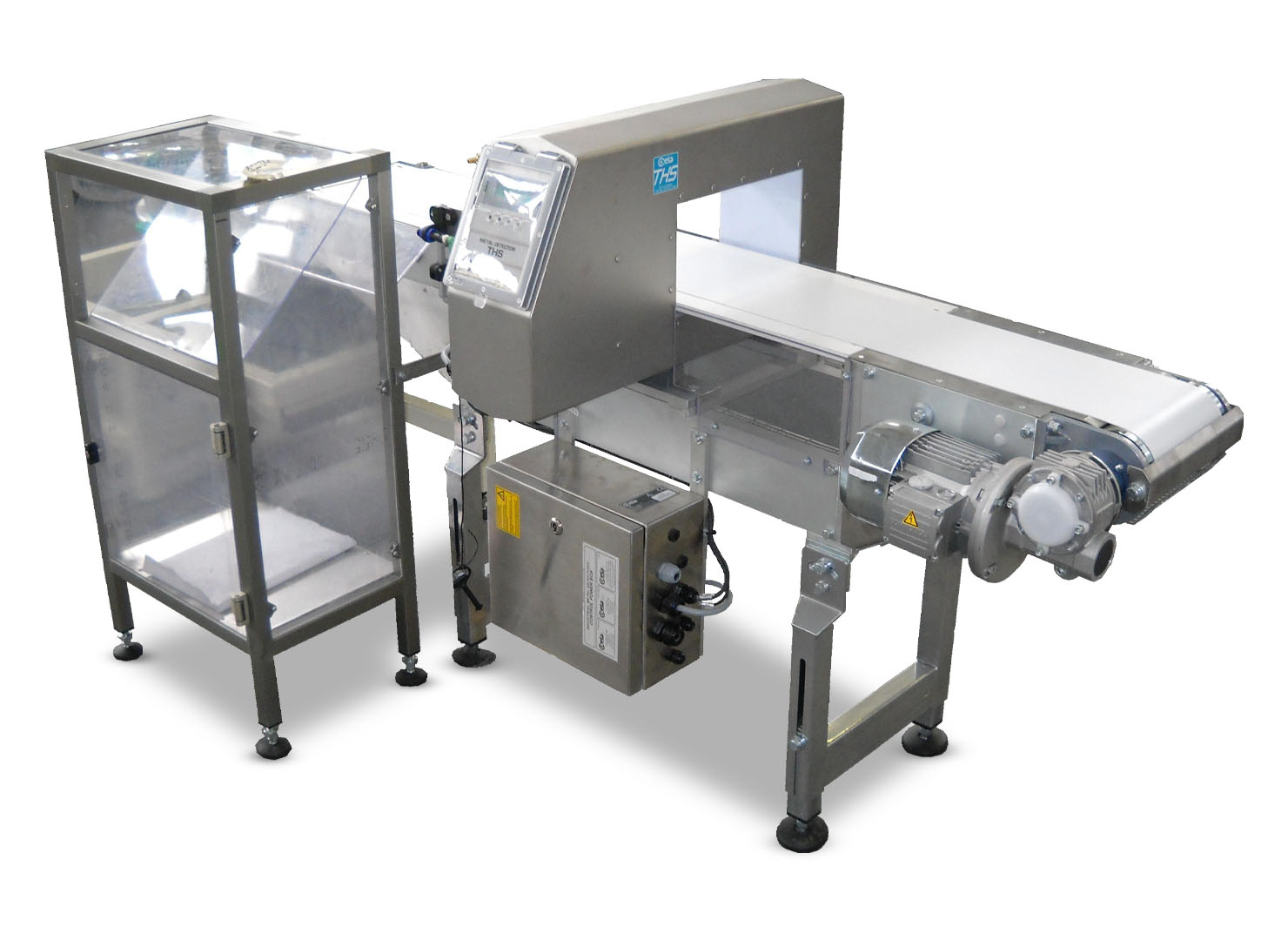

MET_SLIM

METAL DETECTOR

The MET SLIM metal detector for retail packaging allows you to detect the presence of metal objects inside the bags.

It is equipped with an automatic rejection system and a collection box for non-compliant packages.

MINIMUM DETECTION CAPACITY FOR FERROUS METALS	1.5 mm
MINIMUM DETECTION CAPACITY FOR NON FERROUS METALS	1.8 mm
MINIMUM DETECTION CAPACITY FOR STAINLESS STEEL	2.0 mm
MAX PRODUCTIVE CAPACITY	120 bags/min.

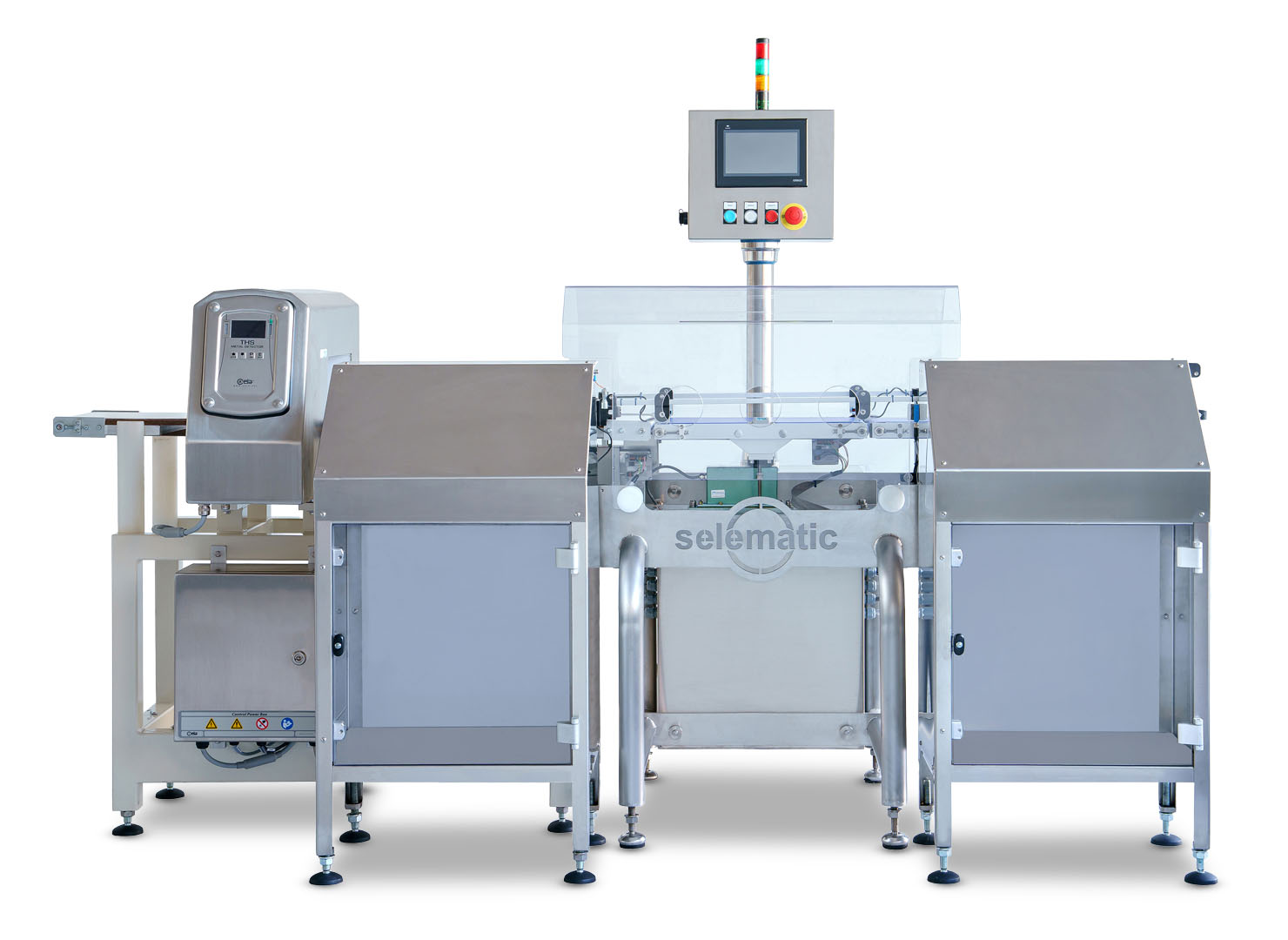

CP120_MET

COMBINED BAG CHECKWEIGHER – METAL DETECTOR

The CP120MET combined checkweigher/metal detector module verifies the correct weight of bags and, in combination with the metal detector, allows the presence of metal objects inside them to be detected.

The combination of the two elements allows for space optimisation.

It is equipped with an automatic ejection system and collection boxes for non-compliant packages.

MAXIMUM CAPACITY	2600 g
MINIMUM CAPACITY	50 g
PRECISION CLASS	XIII (1)
SENSITIVITY	1 g
MINIMUM DETECTION CAPACITY FOR FERROUS METALS	1.5 mm
MINIMUM DETECTION CAPACITY FOR NON FERROUS METALS	1.8 mm
MINIMUM DETECTION CAPACITY FOR STAINLESS STEEL	2.0 mm
MAX PRODUCTIVE CAPACITY	130 bags/min.

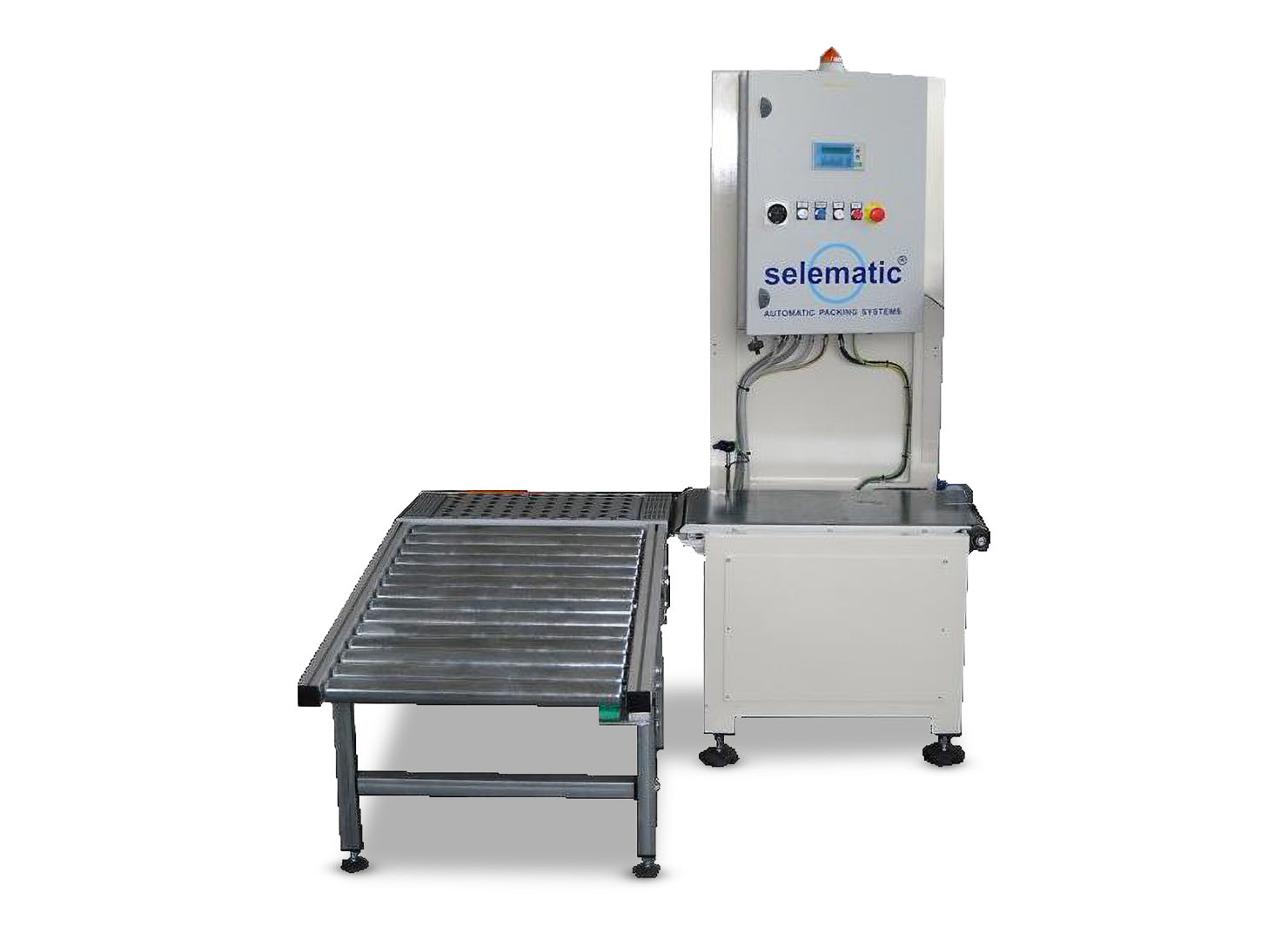

CPC

PAL BOX CHECKWEIGHER

The CPC carton box checkweigher allows you to statically check the weight of full boxes.

It is equipped with an automatic ejection system and a system for accumulating non-compliant cartons.

MAXIMUM CAPACITY	20 Kg
MINIMUM CAPACITY	20 g
SENSITIVITY	20 g
MAXIMUM BOX LENGTH	Up to 600 mm
MAXIMUM BOX WIDTH	Up to 400 mm
MAXIMUM BOX HEIGHT	Up to 400 mm
MAX PRODUCTIVE CAPACITY	15 cartons/min.

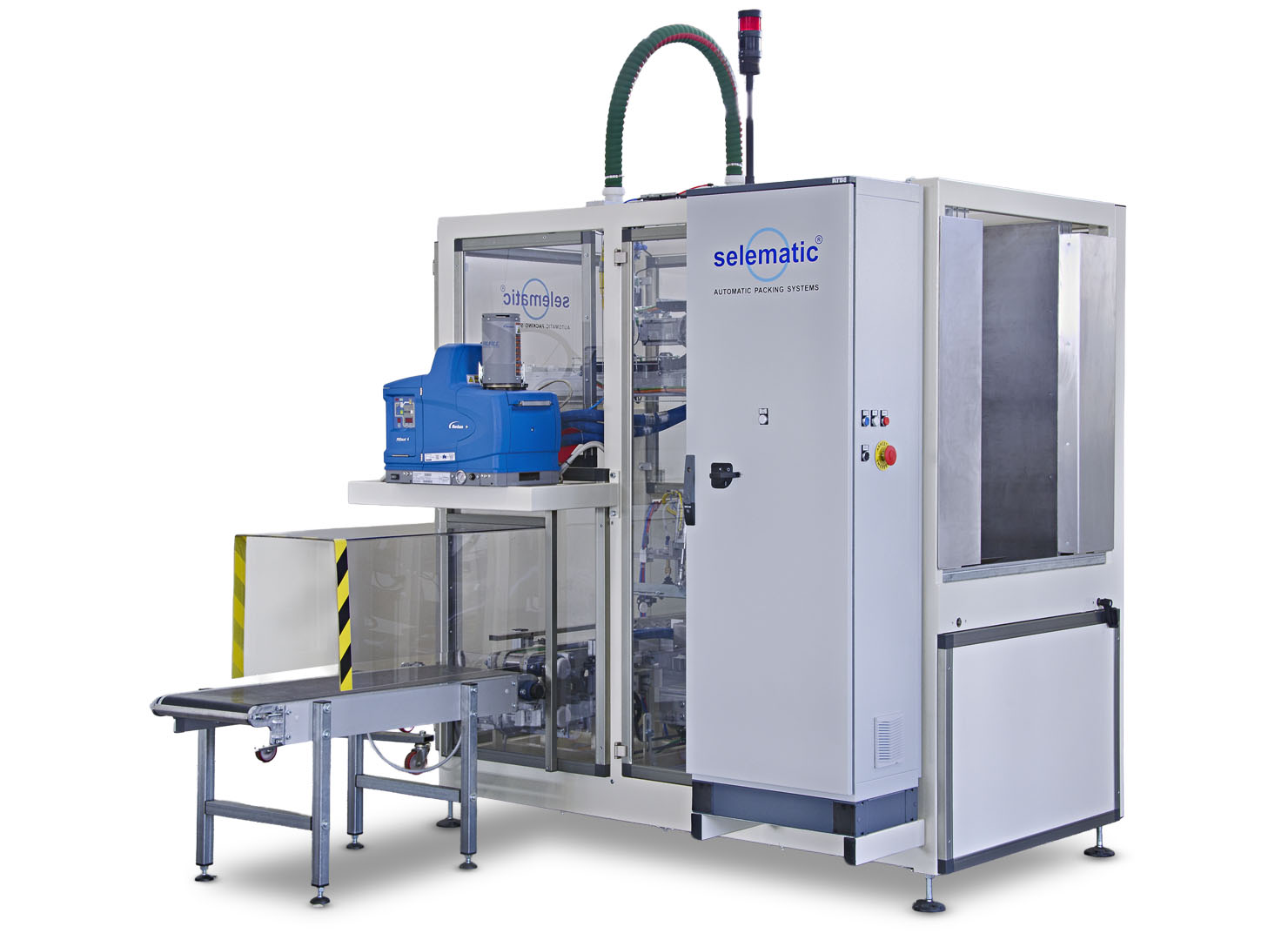

CCH4

AUTOMATIC LID APPLICATING MACHINE

The CCH4F automatic lid applicating machine module is a completely autonomous module that can also be installed as a terminal on the cartoning line of existing systems in cases where a lid needs to be applied to a carton without flaps.

When this application is not required, it can be by-passed.

MAXIMUM LID/TRAY LENGTH	Up to 600 mm
MAXIMUM LID/TRAY WIDTH	Up to 400 mm
MAX PRODUCTIVE CAPACITY	16 cartons/min.

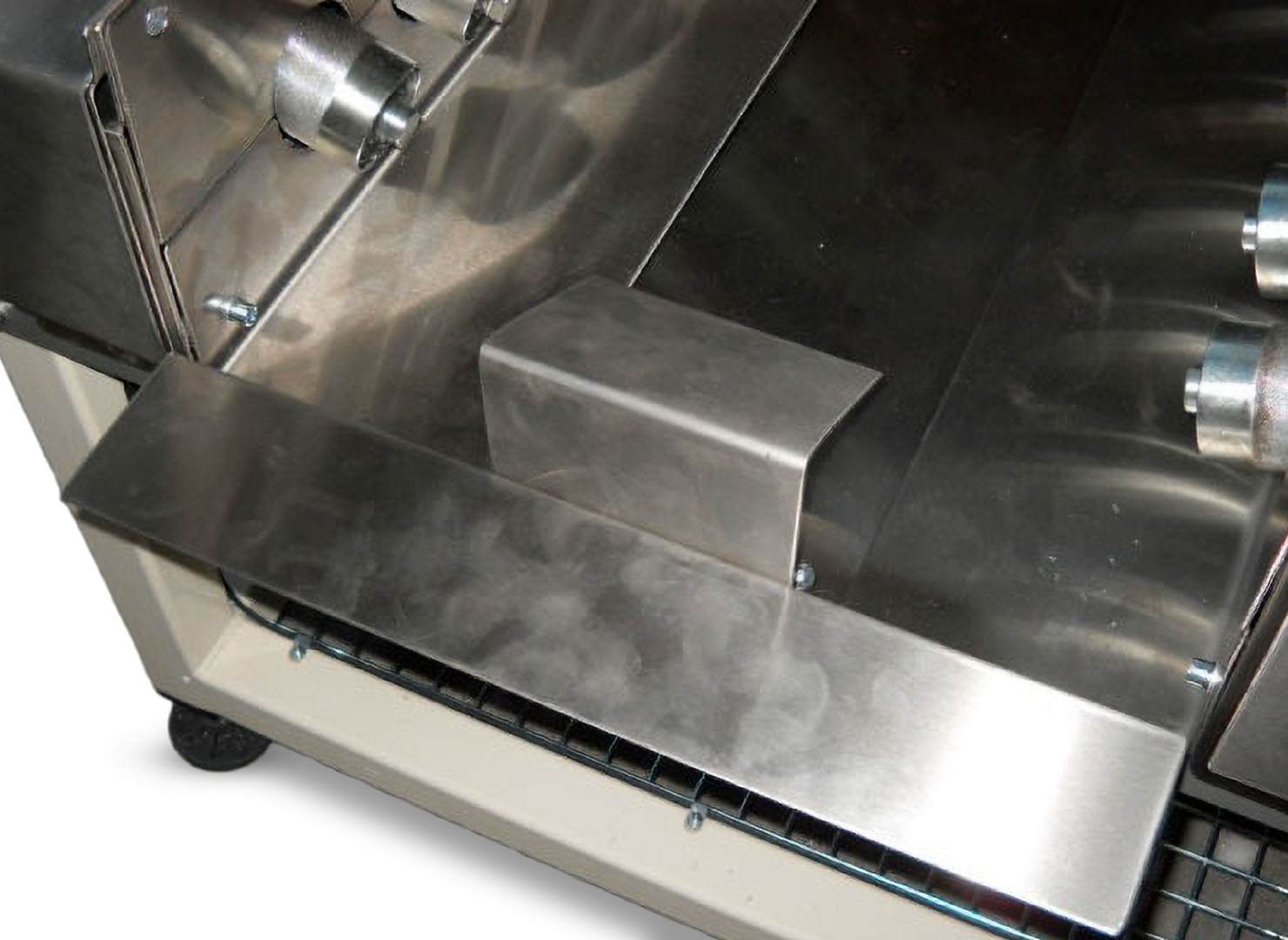

CS-EA

CARDBOARD BOX CORRECT CLOSURE CONTROL MODULE

The CS EA machine module allows for the control of any failure to close the top and/or bottom flaps of full cartons coming from the cartoning machine to which it is connected.

Where required, it can be combined with the full carton checkweigher.

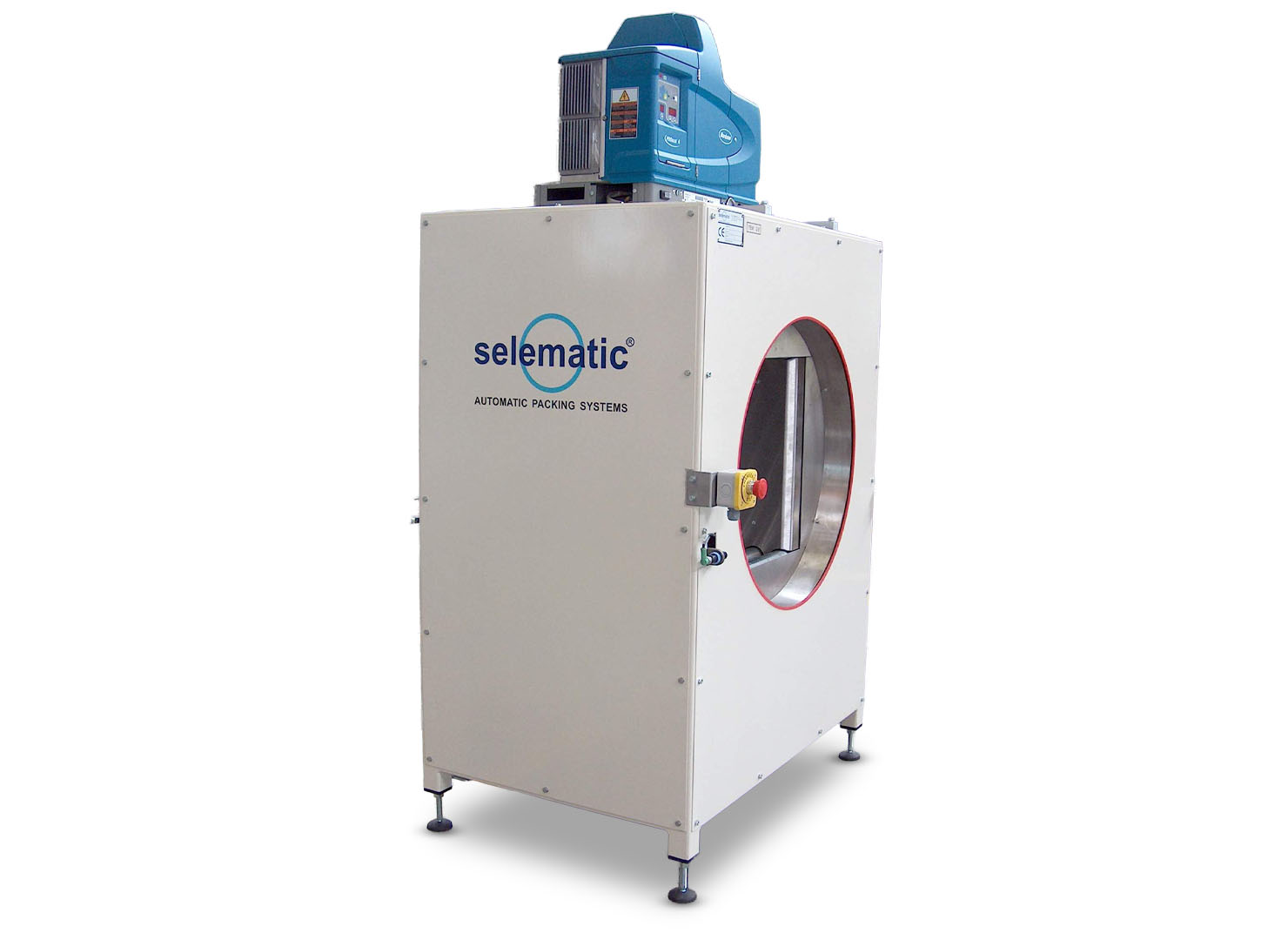

R180

180° CARTON ROTATION MODULE

The R180 carton rotation machine module, mainly installed downstream of the lid application machine module (CCH4F), has the optional function of turning full cartons with lids to allow them to be palletised with the lid/display at the bottom.

When this application is not required, it can be by-passed.

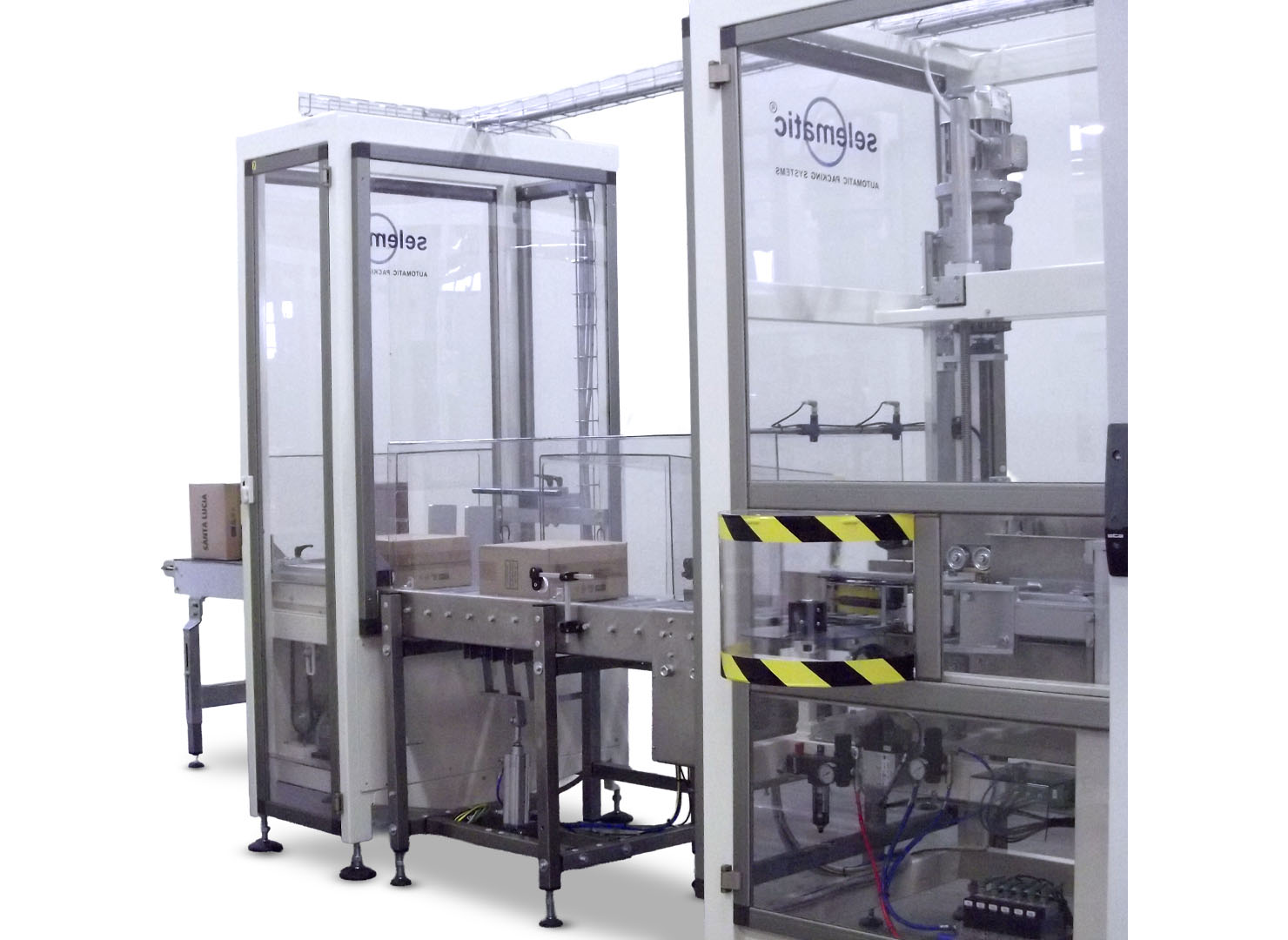

H300

90° CARTON ROTATION MODULE

The H300 carton rotation machine module, to be installed at the exit of side-filling cartoning systems, allows full cartons to be turned vertically with a 90° rotation.
