INCARTONAMENTO
DISPOSABLE
Family of systems for the packing of disposable plates and cups.

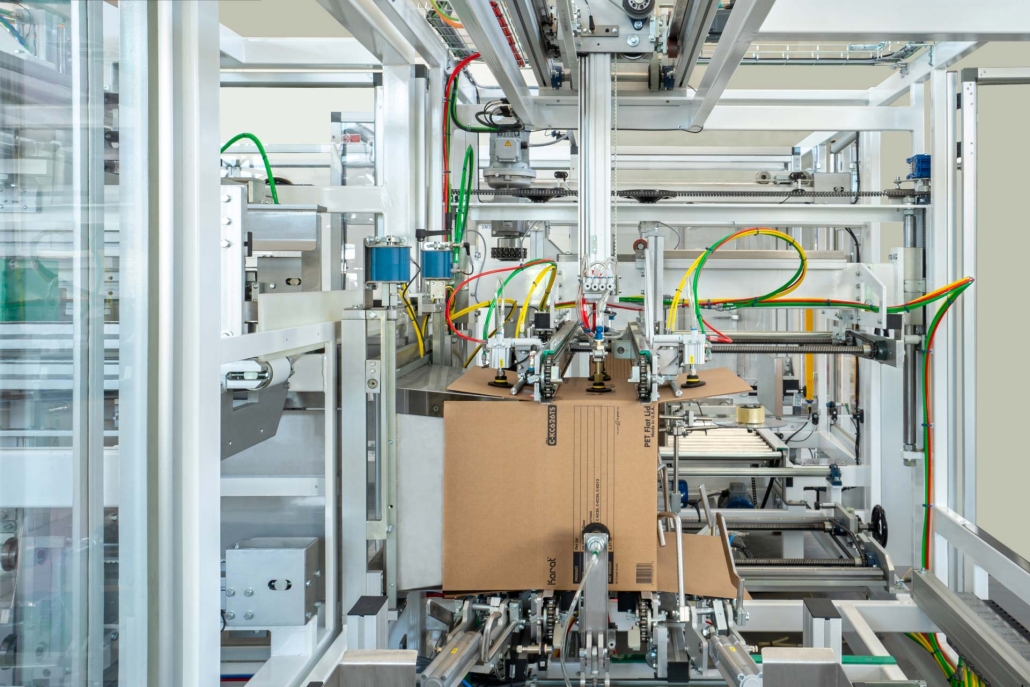

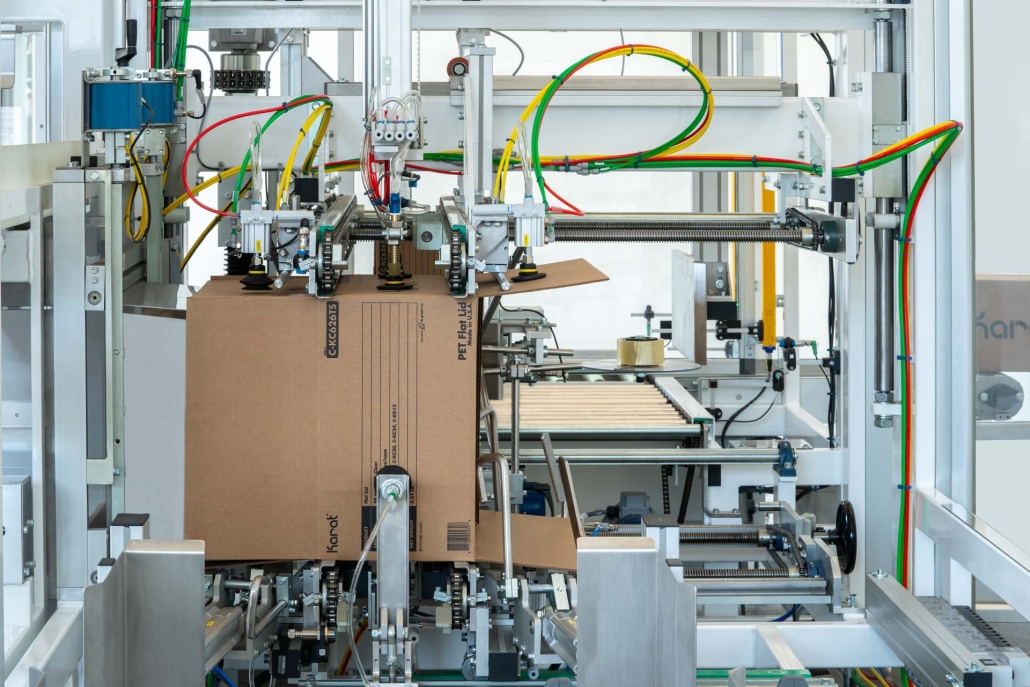

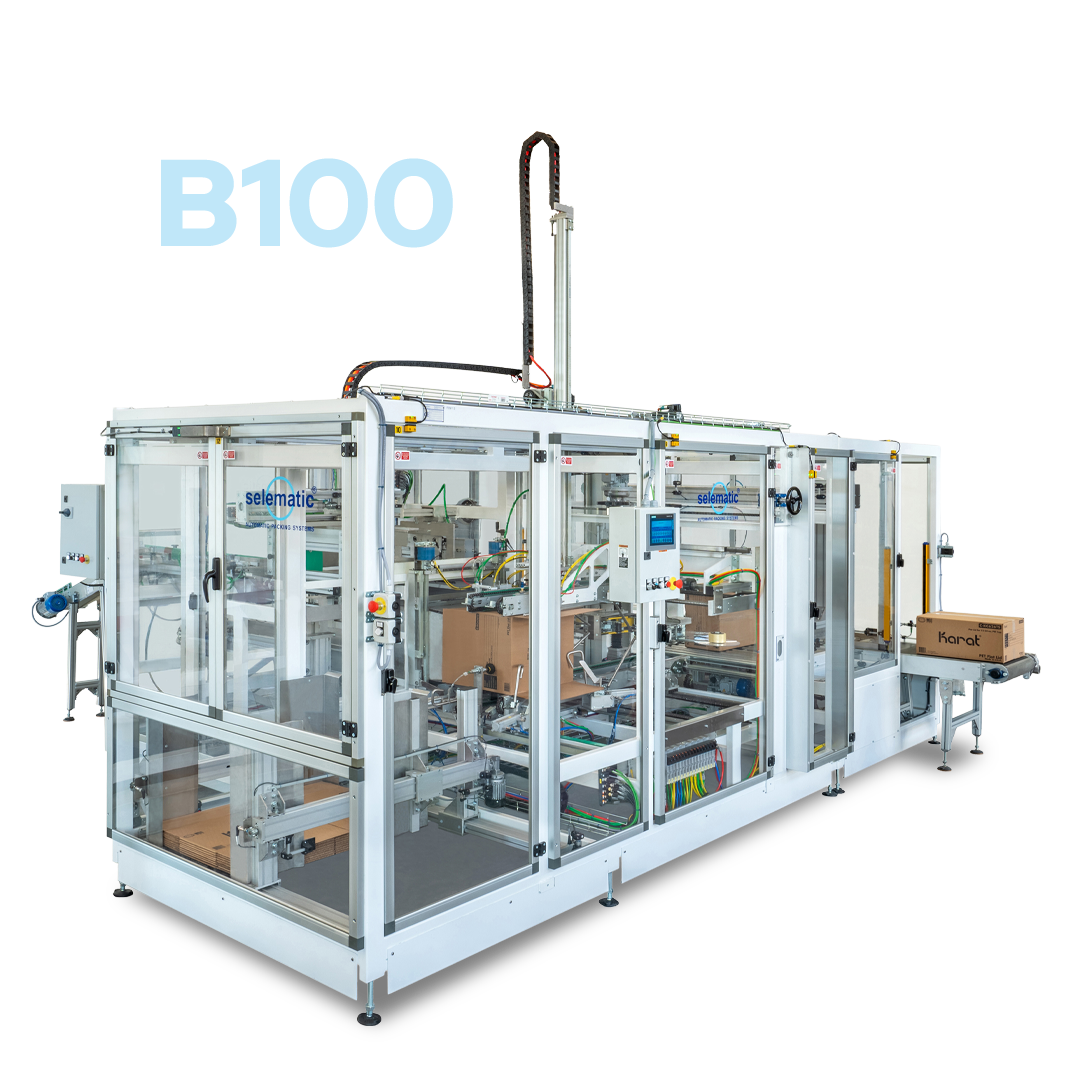

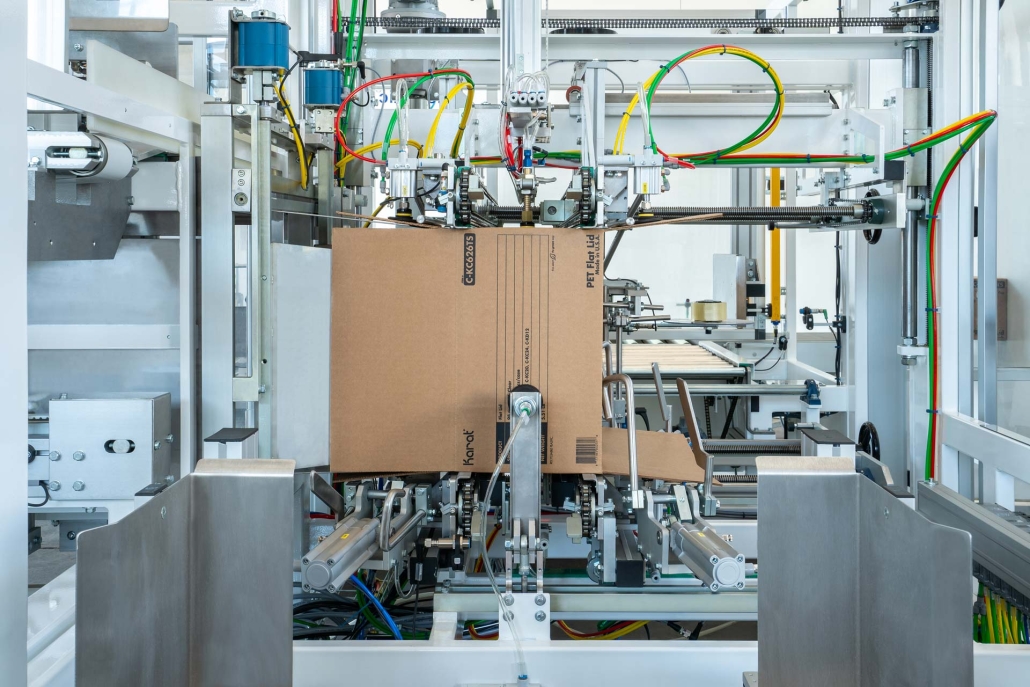

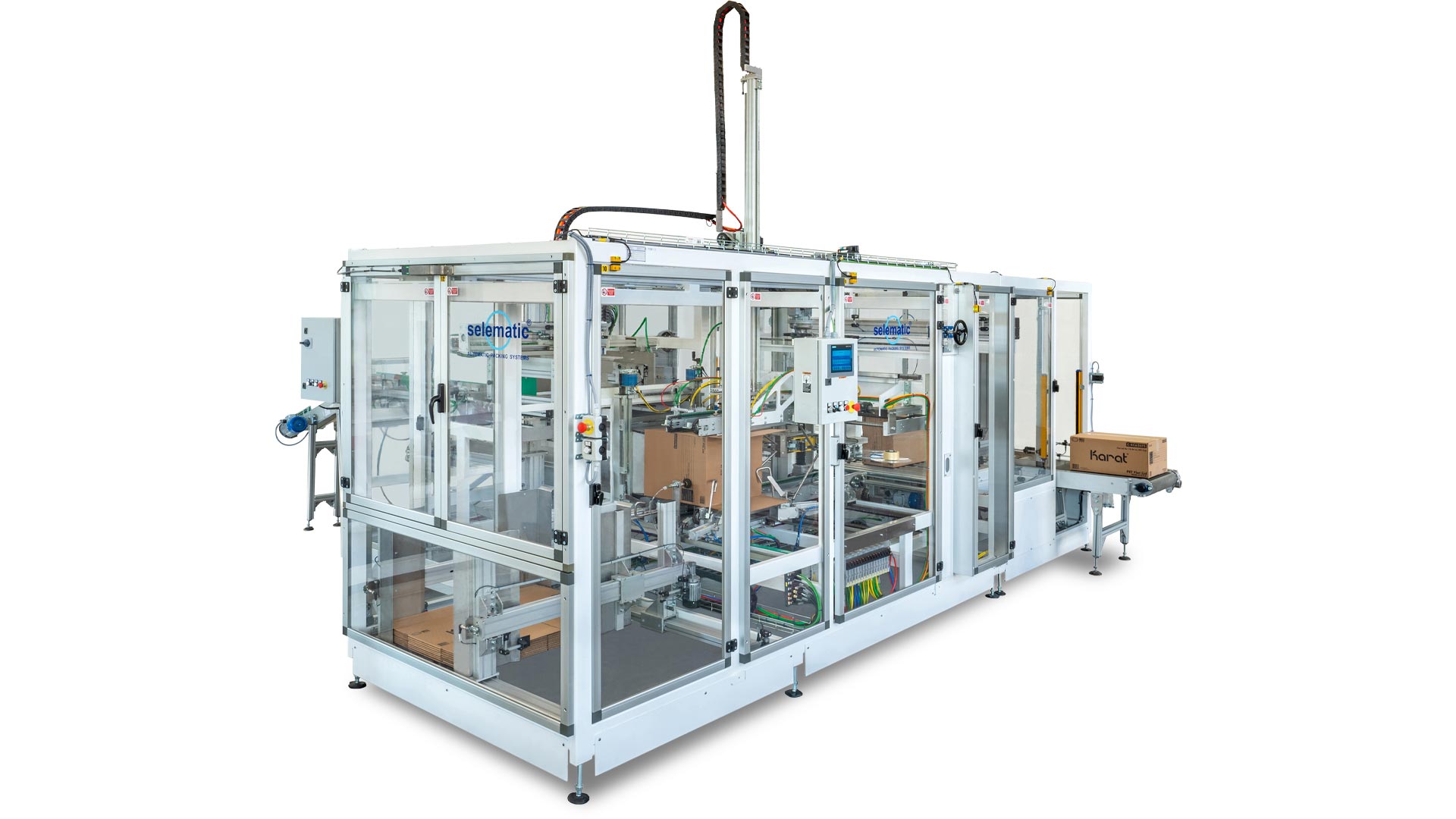

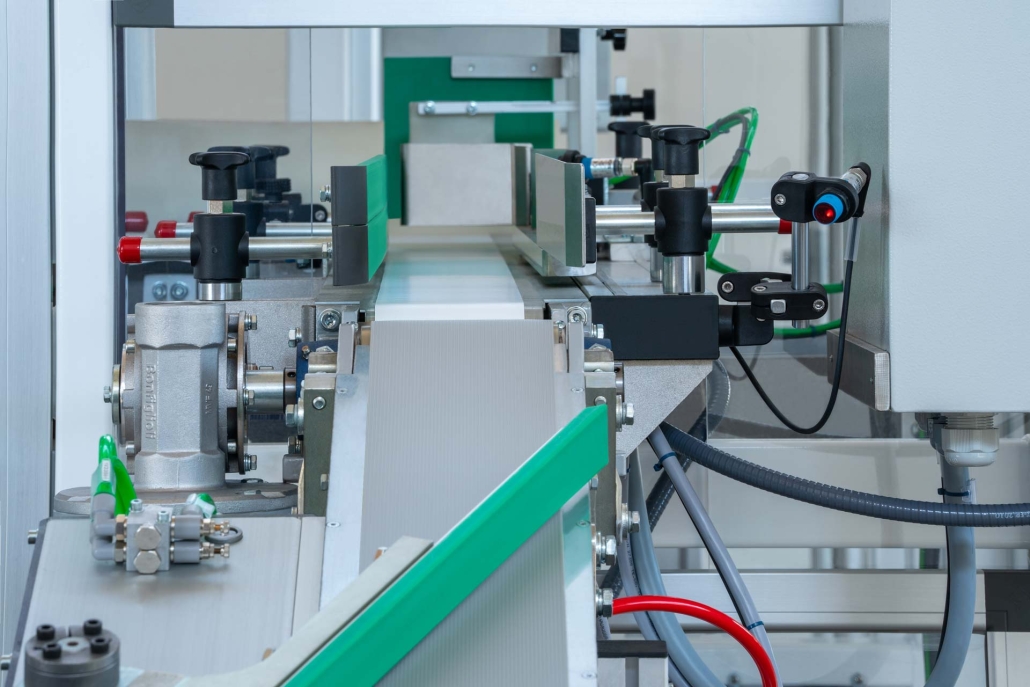

B100
Automatic cartoning machine for packs of disposable cups, single or double sticks.
Single pack input channel.
Front filling of the carton.
Final closure with self-adhesive tape and/or hot melt glue.
- High production capacity
- User-friendly
- Reduced footprint
| INLET CHANNELS | 1 |
| FILLING PRINCIPLE | Lateral filling by a push system. |
| MAX SPEED | 45 sticks/min. 6 cartons/min. |
| CARTON LIMITS | Length from 300 mm to 600 mm Width from 150 mm to 400 mm Height from 200 mm to 400 mm |
PRODUCT
SECONDARY PACKAGE
PTT/99S
Automatic cartoning machine for packs of disposable plates, single or double sticks.
Single pack input channel.
Front filling of the carton.
Final closure with self-adhesive tape and/or hot melt glue.
- High production capacity
- User-friendly
PRODUCT
SECONDARY PACKAGE
| INLET CHANNELS | 1 |
| FILLING PRINCIPLE | Lateral filling by a push system. |
| MAX SPEED | 40 sticks/min. 6 cartons/min. |
| CARTON LIMITS | Length from 300 mm to 450 mm Width from 150 mm to 230 mm Height from 150 mm to 450 mm |
1P/18_SCA
Automatic cartoning machine for disposable cutlery packs, arranged horizontally in the carton, transversely, with the possibility of rotating the overlapping layers through 180°.
Single pack input channel.
American-style carton, filled from above with the aid of a SCARA type robot.
Final carton closure with self-adhesive tape and/or hot melt glue.
- High production capacity
- Partial self-regulation
- User-friendly
- Reduced footprint
PRODUCT
SECONDARY PACKAGE
| INLET CHANNELS | 1 |
| FILLING PRINCIPLE | Filling from above by suction, with packs handled by SCARA robots. |
| MAX SPEED | 50 packs/min. 15 layers/min. 5 cartons/min. |
| CARTON LIMITS | Length from 200 mm to 400 mm Width from 180 mm to 400 mm Height from 150 mm to 300 mm |
