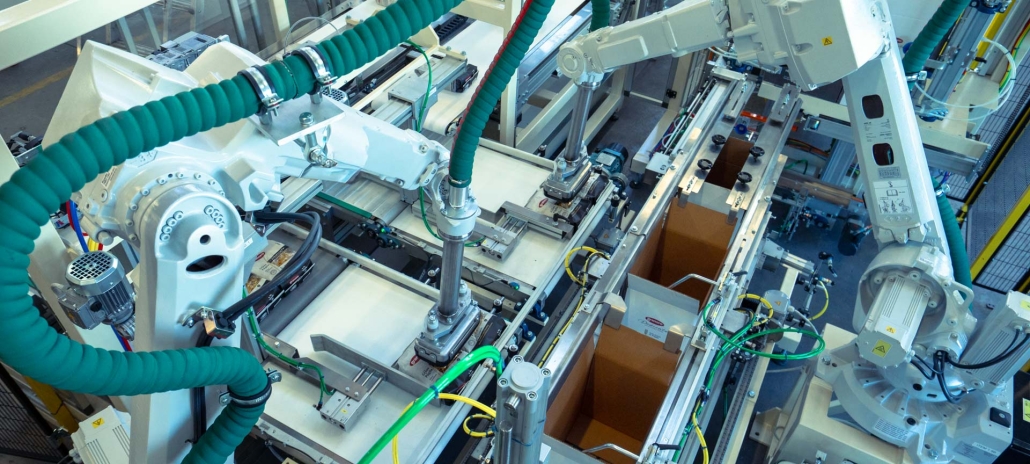

Category of systems for flexible packaging particularly suited to arranging them in cross positions. The carton is filled through cycles of picking up and depositing layers using suction with special plates moved by 1 or 2 anthropomorphic industrial robots.

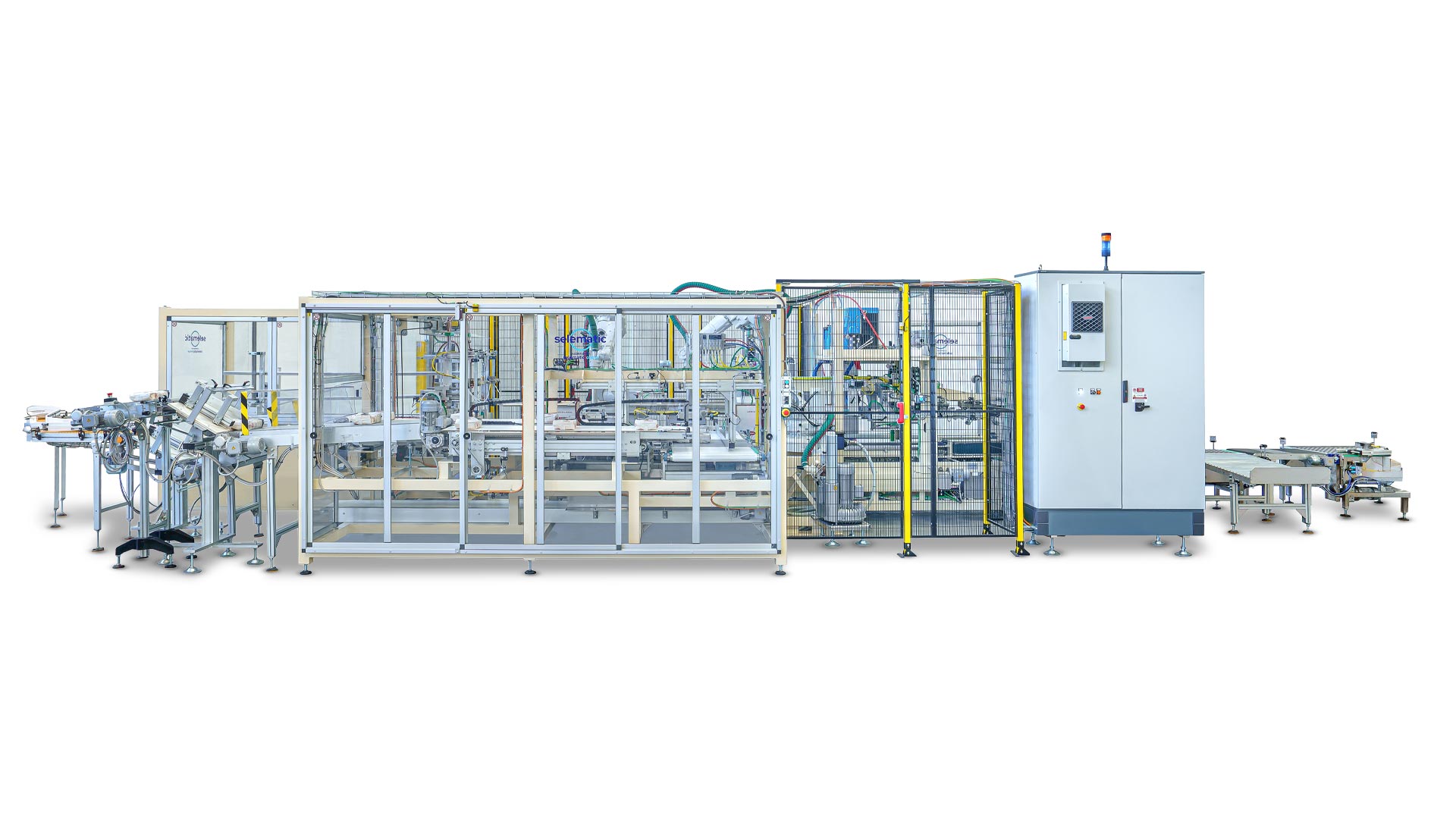

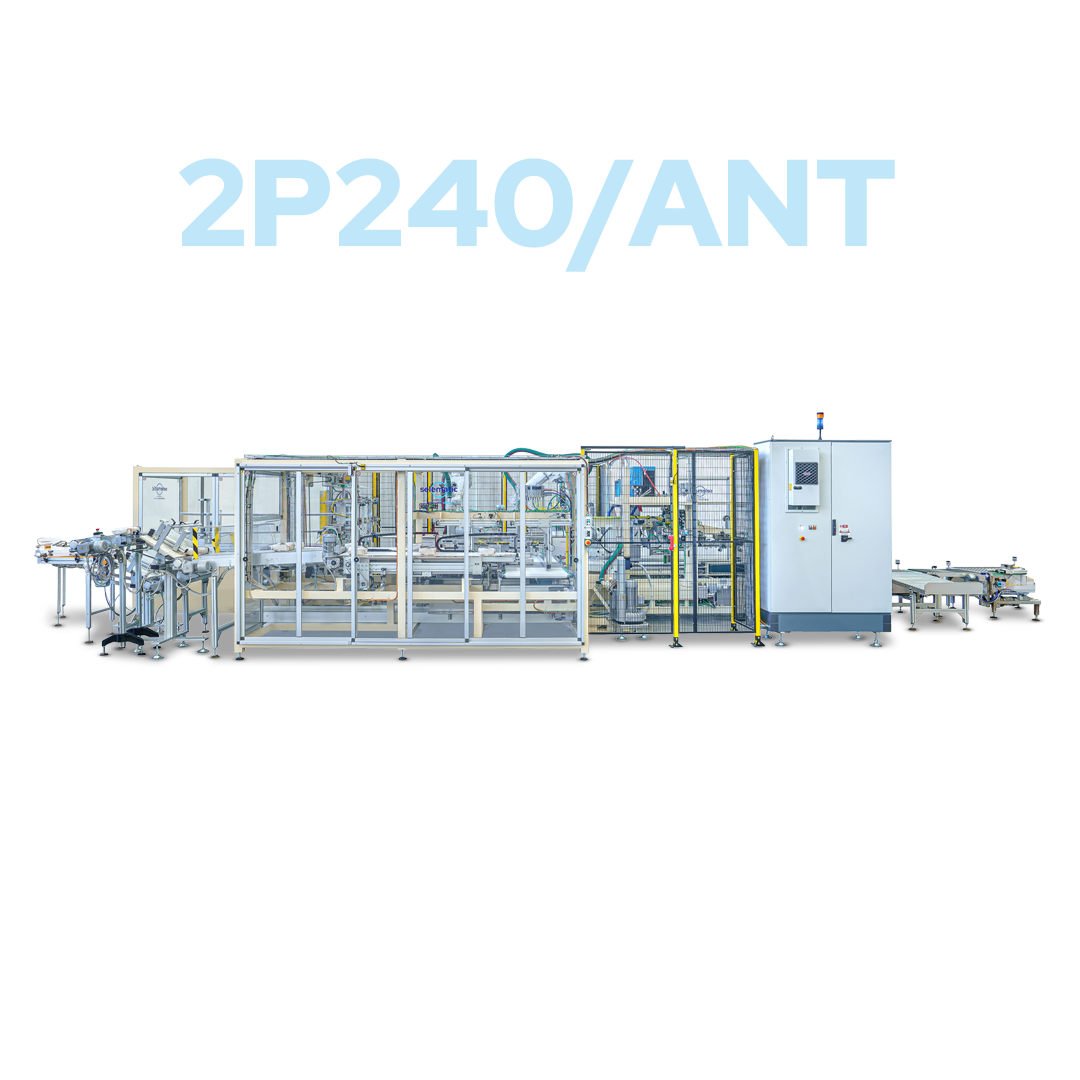

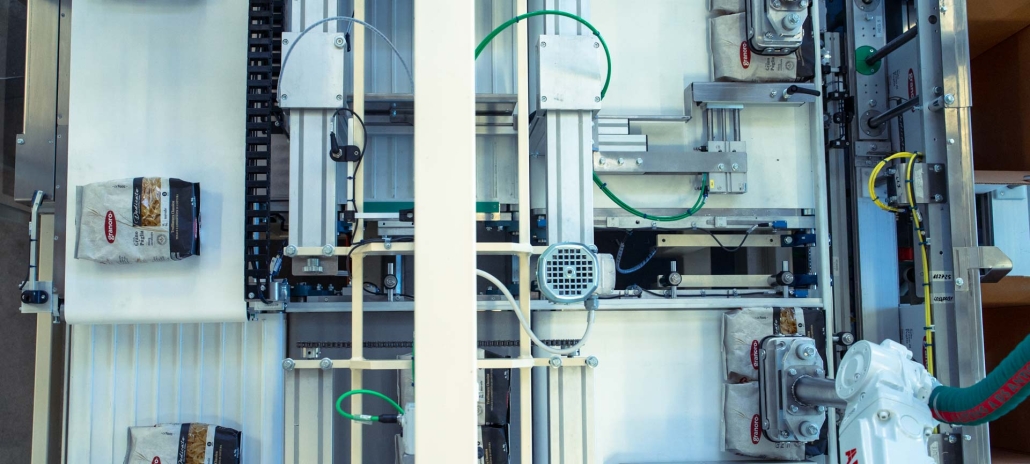

Automatic cartoning machine for all retail packs or catering packs, which can be arranged in all possible horizontal positions.

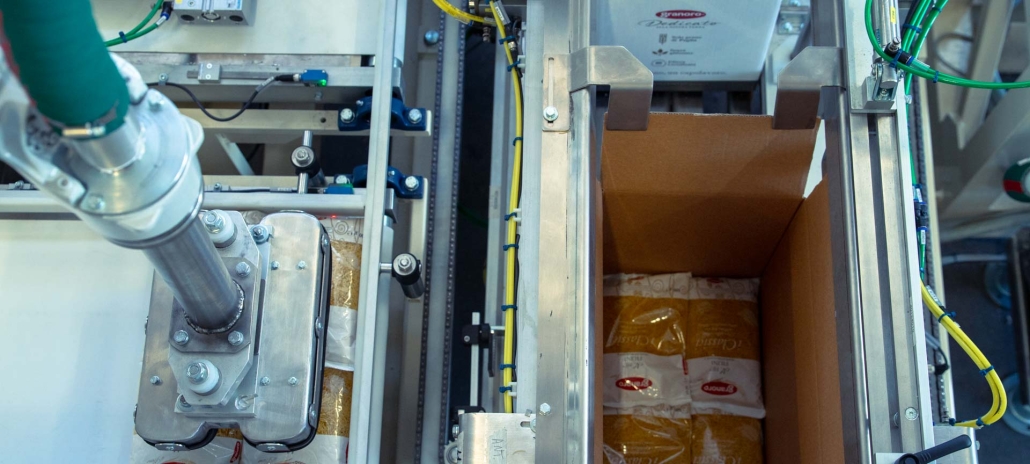

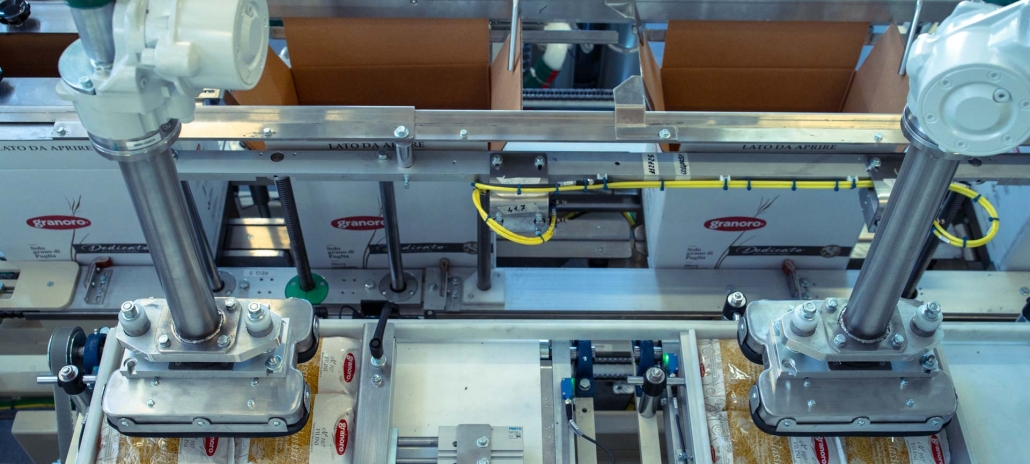

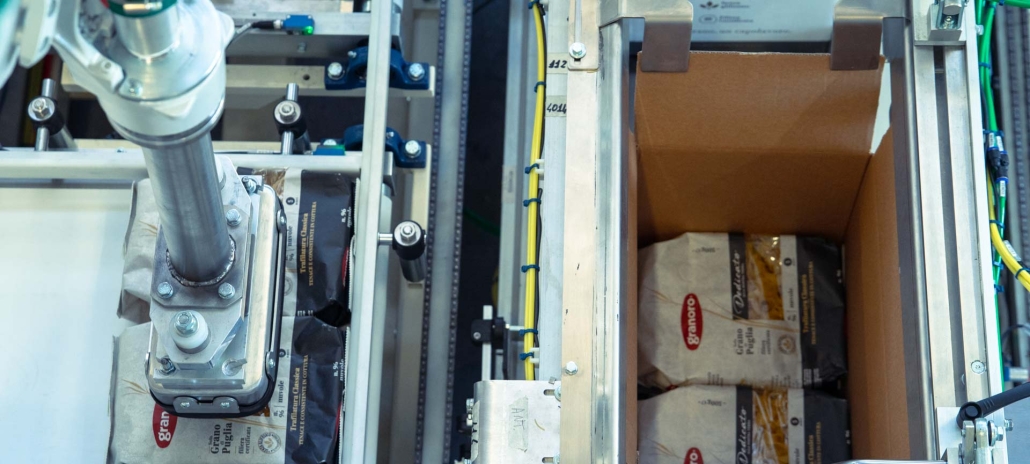

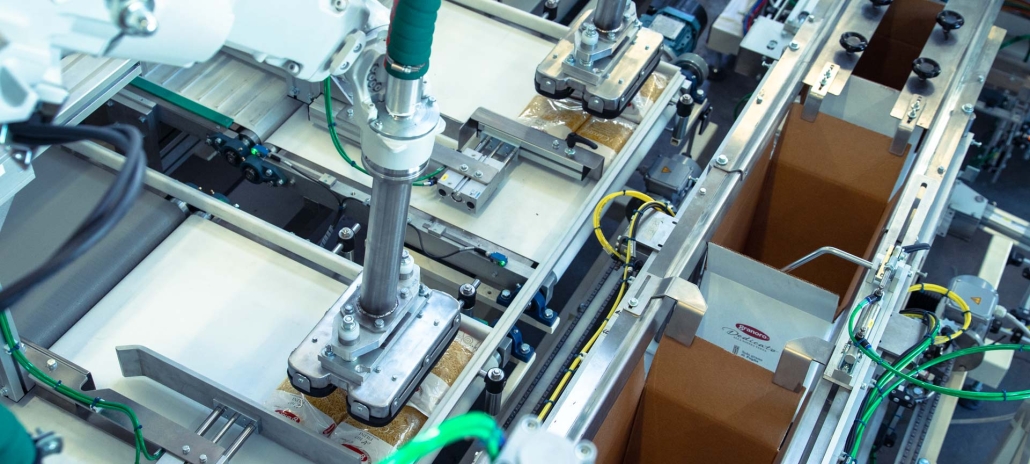

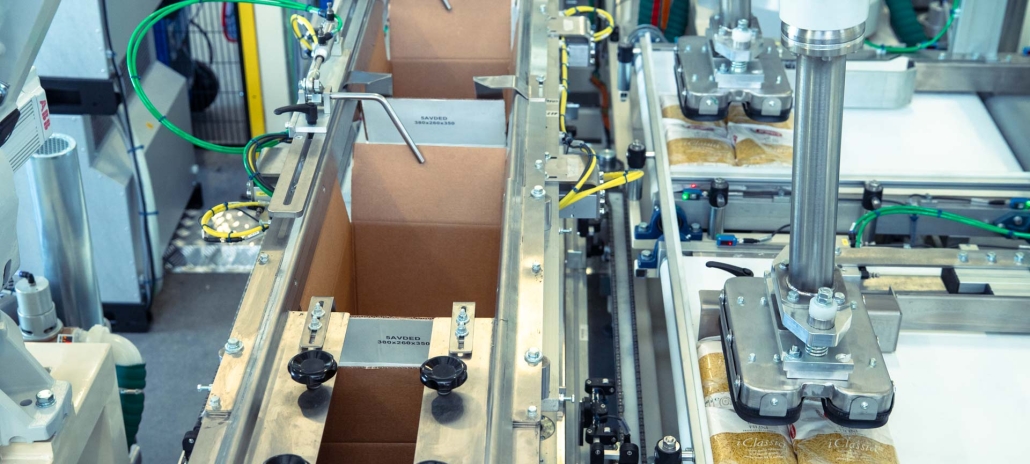

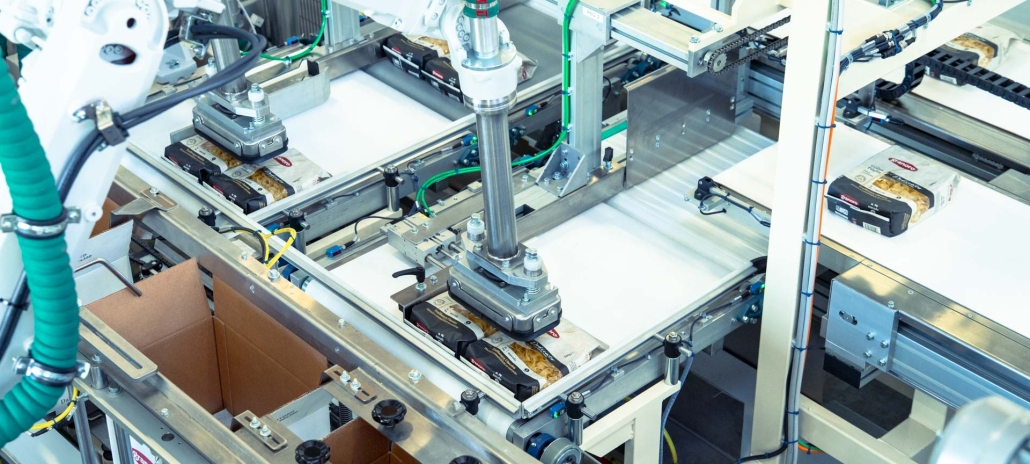

American-style carton, filled from above with two suction plates moved by a 6-axis anthropomorphic industrial robot.
Carton closure with adhesive tape and/or hot melt glue.
| INLET CHANNELS | 2 |
| FILLING PRINCIPLE | Top loading with 6-axis anthropomorphic industrial robots. |
| MAX SPEED | 240 packs/min. (120 packs/min for each inlet channel) 60 layers/min. (30 layers/min for each inlet channel) 15 cartons/min. |
| CARTON LIMITS | Length from 250mm to 600mm Width from 140mm to 400mm Height from 120mm to 400mm |
Automatic cartoning machine specifically designed for packs with fins, doy packs or catering packs, which can be arranged in all possible horizontal configurations.

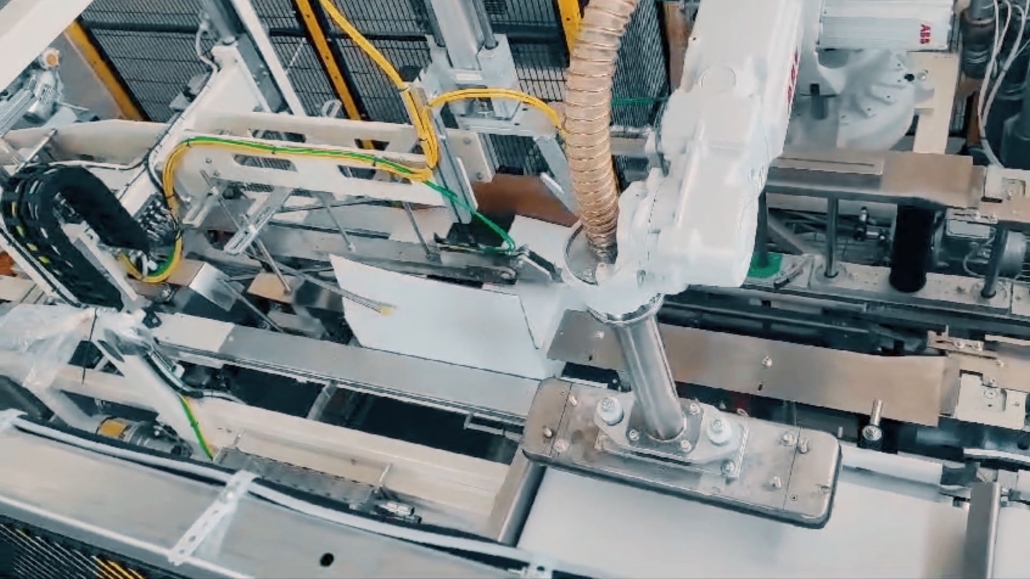

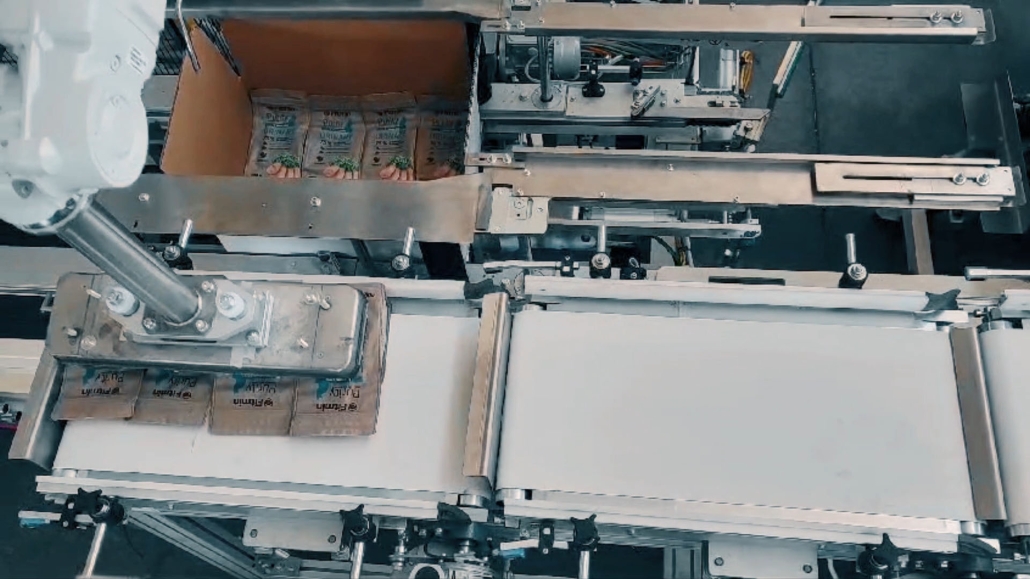

American-style carton, filled from above with a suction plate moved by a 6-axis anthropomorphic industrial robot.
Carton closure with adhesive tape and/or hot melt glue.
| INLET CHANNELS | 1 |
| FILLING PRINCIPLE | Top loading with 6-axis anthropomorphic industrial robot. |
| MAX SPEED | 60 packs/min. 30 layers/min. 15 cartons/min. |
| CARTON LIMITS | Lenght from 250mm to 600mm Width 140mm to 400mm Height from 120mm to 400mm |
Automatic cartoning machine specifically designed for packs with fins, Doypacks or catering packs, which can be arranged in all possible horizontal configurations.
Single inlet channel.
American-style carton, filled from above with two suction plates moved by a 6-axis anthropomorphic industrial robot.
Carton closure with adhesive tape and/or hot melt glue.
| INLET CHANNELS | 1 |
| FILLING PRINCIPLE | Top loading with two 6-axis anthropomorphic industrial robots. |
| MAX SPEED | 100 packs/min. (50 packs/min for each inlet channel) 40 layers/min. ( 20 layers/min for each inlet channel) 15 cartons/min. |
| CARTON LIMITS | Lenght from 250mm to 600mm Width from 140mm to 400mm Height from 120mm to 400mm |
